Information

VR Access Solutions V450R and V750R N2 Lattice Beams are manufactured under a quality management procedure in accordance with ISO 9001 Quality Management Systems and the system is documented and implemented in accordance with this.

All beam Calculations are in accordance with the requirements of BS EN 12811-1:2003 with material design in accordance with the requirements of BS EN 1999-1-1:2007+A2:2013.

V750R N2 Lattice Beams

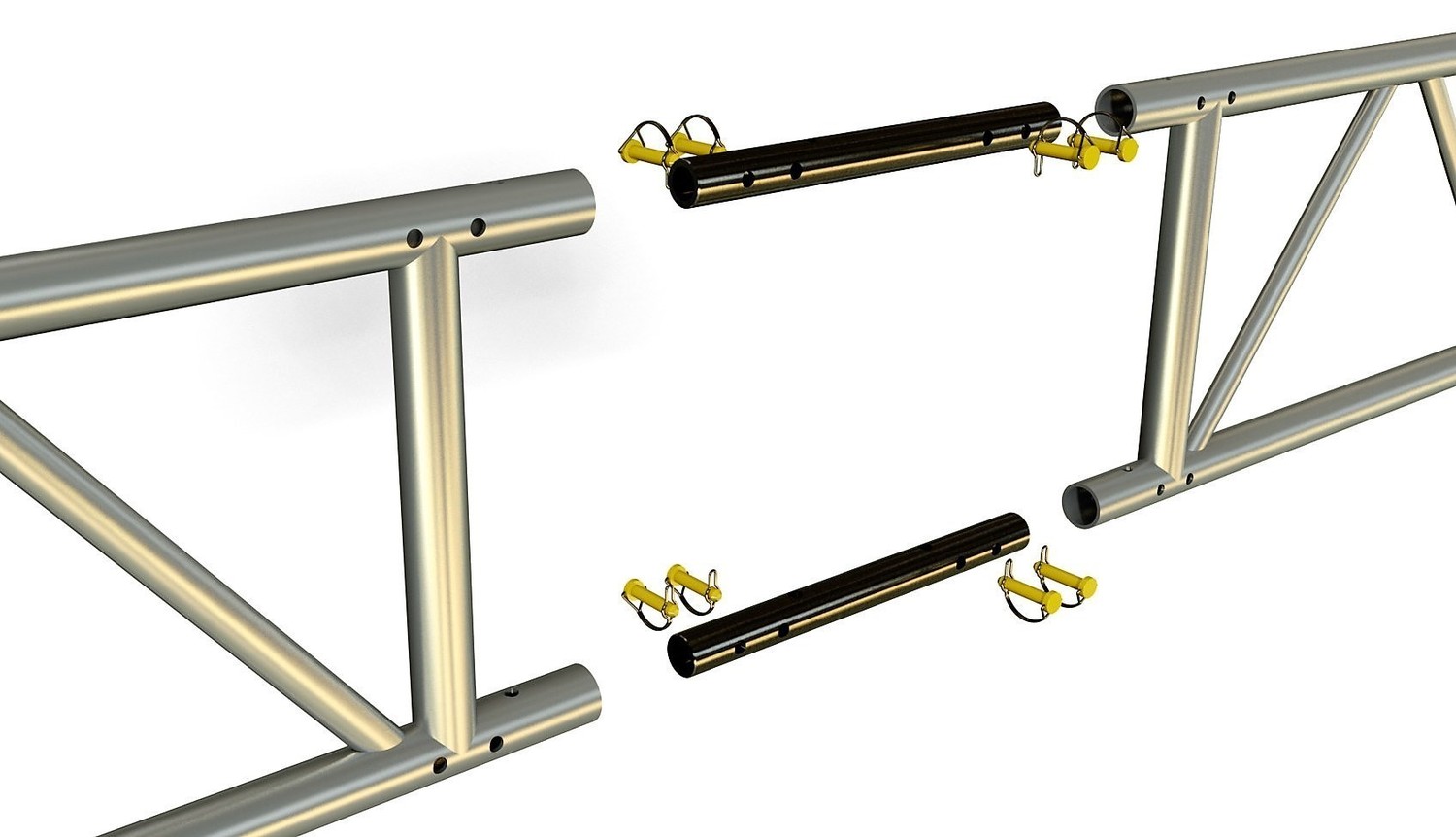

The 750mm N2 Lattice Beams are constructed out of 48.3mm diameter by 4.4mm wall thickness in 6082-T6 aluminum tubes. Beam lengths are generally in 1m increments up to 7m and sections can be connected together using 38.1mm diameter x 6mm thick spigot connectors in pairs using 2 x M12 bolts or spring clips,


V450R Lattice Beams
The 450mm Lattice Beams are constructed out of 48.3mm diameter by 4.4mm wall thickness top bottom and vertical tubes, in 6082-T6 aluminum. Diagonal members are oval sections of 22mm x 38.2mm minor and major axes with a 2.6mm wall thickness. Beam lengths are generally in 2m increments up to 8m with a 1m additional length and sections can be connected together using 38.1mm diameter x 4mm thick spigot connectors in pairs using 2 x M12 bolts or spring clips,

750 N Beams Data

750mm X-Beam

X-Beams are a lightweight alternative to traditional style scaffolding beams. They possess an unsurpassed weight to strength ratio thanks to their unique frame design that means less beams per job.

The X-Beam's quick fit connecting system using spring clips and spigots also means easy assembly, yet another advantage over traditional style scaffolding.

Length options
750mm X-Beams are available in a range of lengths from 1 to 6 metres

750 X Beams Data

1300mm X-Beam

When existing aluminium 750 scaffolding beams are not strong enough to support a scaffold or structure, 1300mm X-Beam's high strength makes it the perfect solution.

1300 X Beams Data


1500mm X-Beam

What is a 1500mm X-Beam?
When existing aluminium scaffolding beams are not strong enough to support a scaffold or structure, Apollo's 1500mm X-Beam's high strength design makes it the perfect solution.

At 1500mm wide, this X-Beam is the widest scaffolding beam system on the market and can span distances up to 100m.

Length options
The 1500mm X-beam is available in lengths of 1, 2 and 3 metres


1500 X Beams Data


VR Beam User Guide
